Model No.: SIIC-M40-EEVS

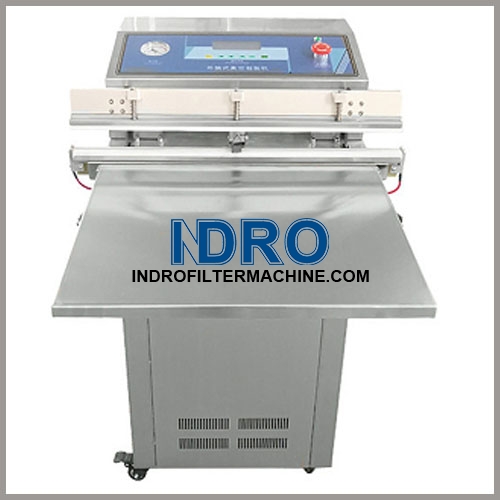

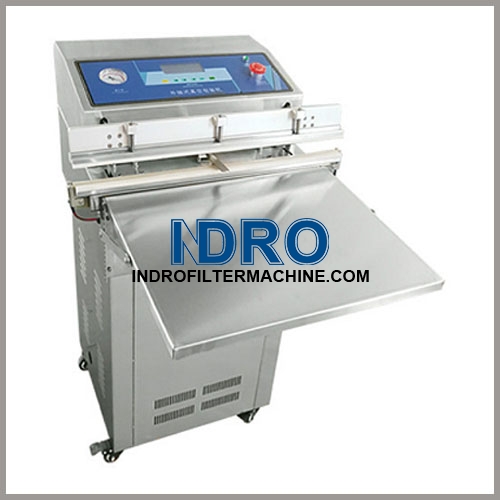

This external
‑extraction vacuum sealing packaging machine pumps out air directly from the outside of bags without placing items inside a vacuum chamber.
It is suitable for large
‑size and bulky products, widely used to seal and preserve hardware, textiles and food, including filter packaging.
Data:
| Item |
Option-A |
Option-B |
Option-C |
| Sealing length |
520mm |
630mm |
820mm |
| Sealing width |
8mm |
8mm |
8mm |
| Sealing time |
0-8s |
0-6s |
0-6s |
| Vacuum pumping time |
0-99s |
0-99s |
0-99s |
| Gas flushing time |
0-99s |
0-99s |
0-99s |
| Cooling time |
0-9s |
0-9s |
0-9s |
| Ultimate vacuum degree |
≤1.332KP |
≤1.332KP |
≤1.332KP |
| Worktable size |
550x330mm |
550x450mm |
550x450mm |
| Power |
1KW |
1.5KW |
2KW |
| Power supply |
220V/50HZ/Single Phase |
220V/50HZ/Single Phase |
220V/50HZ/Single Phase |
| Machine weight |
41KGS |
85KGS |
90KGS |
| Machine dimensions |
66x66x41cm |
90*68*97cm |
90*88*97cm |
